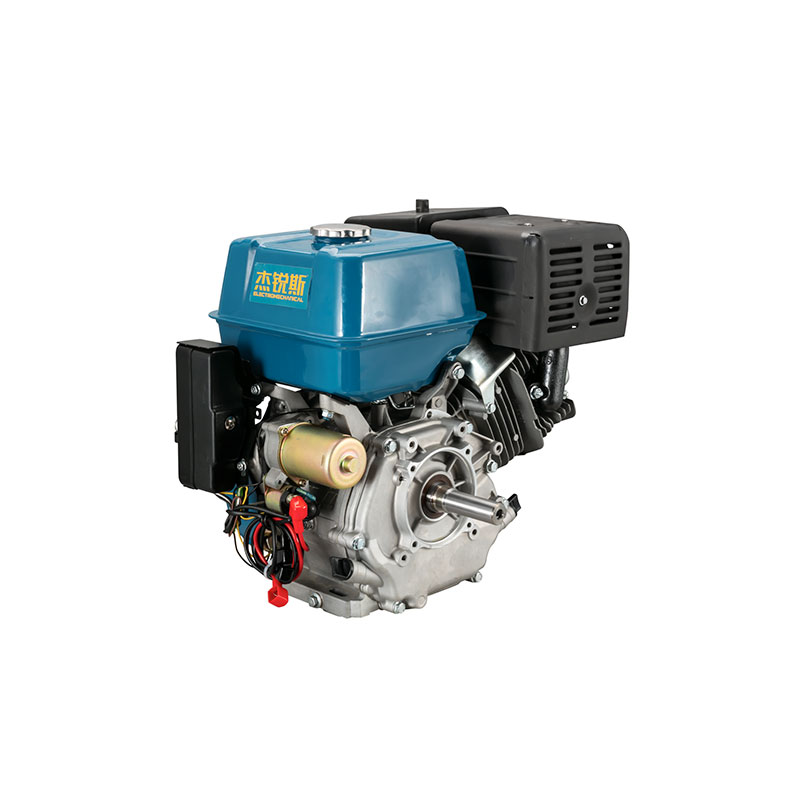

Gasoline power engine series
JRS-188F/JRS-190F/JRS-192F
JRS-188F/JRS-190F/JRS-192F
Product overview:
To meet a variety of different work needs, professional machinery manufacturers choose high-quality and high-standard raw materials to ensure quality.
Parameter
Technical parameters：
| Model | JRS-188F | JRS-190F | JRS-192F |
| Engine Type | Air-cooled;4-stroke;OHV;single cylinder | ||
| Bore X Stroke | 88x64(mm) | 90x66(mm) | 92x66(mm) |
| Displacement | 420cc | 439cc | 389cc |
| Compression Ratio | 8.0:1 | 8.0:1 | 8.2:1 |
| Max.Power Output | (13HP)9.6kW | (15HP)11kW | (16HP)11.8kW |
| Rated Power Output | (11.7HP)8.6kW | (13HP)9.6kW | (14HP)10.3kW |
| Max. Torque | 26.5N.m | 28N.m | 31.2N.m |
| Engine Oil Capacity | 0.6L | ||
| Fuel Capacity | 3.6L | ||
| Min.Fuel Consumption | 360g/kw/h | ||
| Dimensions(LxWxH)(mm) | 390x330x350 | 390x330x350 | 390x330x350 |
| Net Weight | 15kg | 16kg | 16kg |
| Air Cleaner | Semi-dry;Oil bath; Dual | ||
